NEC DSX Phone System Installation
E System Sales, inc offers free services by phone
to help with your NEC DSX 40/80/160 Installation. A do-it-your-selfer can
perform an NEC DSX installation if the NEC EZ Installation cable connector kit is purchased.
Please follow these instructions as well as your installation guide which your
received with your NEC phone
system starter kit.
Do-it-yourself installation.
The NEC EZ Installation cable connector kit makes installing
the DSX a breeze. Click on the link on the right side of the page for an
exploded view of the NEC EZ Installation cable connector kit. After you
have followed the instructions on this page and in the NEC DSX installation
manuals you have received with your phone system, your phone system will be
ready to power up. All DSX systems are plug and play. You will be
ready to send and receive phone calls.
NOTE: 1 pair of wires is required on all incoming
phone lines and phone extensions. A 66 Block termination
punch down tool is also required for installation.
Punch down the appropriate pair of wires for each
terminal. For example, the 300R & 300T terminals are the terminals for the
first phone extension which is extension 300, and the Line 1R and the Line 1T
terminals are for the first incoming telco line witch is Line 1.
|
|
DSX EZ Installation Cable Block
Provides interface from an existing NEC DSX
40/80/160 phone system to the pre-existing wiring in the building
$99.00
add to cart
|

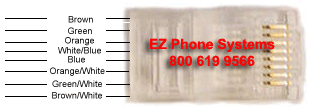

RJ61X Pin Out
|
|
|
|
RJ61X
|
25 Pair Cable
|
|
Block Term
|
Color Code
|
Function
|
|
Cable
1
|
1
2
3
4
5
6
7
8
|
White-Blue
Blue-White
White-Orange
Orange-White
White-Green
Green-White
White-Brown
Brown-White
|
300 T
300 R
301 T
301 R
302 T
302 R
303 T
303 R
|
|
Cable
2
|
9
10
11
12
13
14
15
16
|
White-Slate
Slate-White
Red-Blue
Blue-Red
Red-Orange
Orange-Red
Red-Green
Green-Red
|
304 T
304 R
305 T
305 R
306 T
306 R
307 T
307 R
|
|
Cable
3
|
17
18
19
20
21
22
23
24
|
Red-Brown
Brown-Red
Red-Slate
Slate-Red
Black-Blue
Blue-Black
Black-Orange
Orange-Black
|
308 T
308 R
309 T
309 R
310 T
310 R
311 T
311 R
|
|
Cable
4
|
25
26
27
28
29
30
31
32
|
Black-Green
Green-Black
Black-Brown
Brown-Black
Black-Slate
Slate-Black
Yellow-Blue
Blue-Yellow
|
312 T
312 R
313 T
313 R
314 T
314 R
315 T
315 R
|
|
Cable
5
|
33
34
35
36
37
38
39
40
|
Yellow-Orange
Orange-Yellow
Yellow-Green
Green-Yellow
Yellow-Brown
Brown-Yellow
Yellow-Slate
Slate-Yellow
|
Line 1T
Line 1R
Line 2T
Line 2R
Line 3T
Line 3R
Line 4T
Line 4R
|
|
Cable
6
|
41
42
43
44
45
46
47
48
|
Violet-Blue
Blue-Violet
Violet-Orange
Orange-Violet
Violet-Green
Green-Violet
Violet-Brown
Brown-Violet
|
Line 5T
Line 5R
Line 6T
Line 6R
Line 7T
Line 7R
Line 8T
Line 8R
|
| |
49
50
|
Violet-Slate
Slate-Violet
|
NC
NC
|
The above diagram is a schematic
view of the telco 66 Block provided in the installation kit. Click here for a exploded view of a 66-Block.
The installer will notice that there are 2 empty terminals on the bottom of the 66 Block. That is normal.
PC Admin programming is also available for
programming the NEC DS1000/2000 phone system through a Windows based Personal
Computer. A Windows 2000 or XP PC Computer with an available serial port,
PC Admin cable, and Windows computer skills are required to perform phone system
programming.
|
|
